Flexible
Feeding size
10-400T/h
Capacity

Vertical spiral stirring mill, referred to as vertical mill or tower mill, is a commonly used grinding equip-ment that can effectively grind materials to the required particle size. Crushing and grinding are thebasic processes for material processing, so their role is very critical. Choosing the right equipment fordifferent materials has a very obvious impact on the finished product. Mecru vertical mill can processvarious materials such as metal ore, calcium carbonate, barite, mica, etc., and has a wide range of appli-cations.

01 Relying on the powerful extrusion, grinding and internal classification of mineral mate-rials, the tower mill greatly reduces the system power.

02 It can achieve energy saving of more than 50% in general use occasions, and the energysaving range in special use occasions is extremely high, which greatly reduces produc-tion costs.

03 Relying on internal classification, the tower mill caneasily process the ore into products with the requiredfineness

04 The grinding medium of the tower mill movesin an orderly manner, which reduces ineffectivecollisions and reduces ineffective power con-sumption, thereby reducing noise, vibration,and heat generation, and does not require acooling device.

05 The tower mill operates atlow speed andis an industrial equipment with high reli-ability and long service life. It has strongadaptability to the hardness and grind-ability of mineralmaterials. 06 A tower mill can control its productioncapacity and product particle size by ad-justing the feed amount and feed particlesize, which greatly improves the adapt-ability of the equipment.
| Model | Motor power | Mill volume | Required floor space | Height | Capacity |
|---|---|---|---|---|---|
| TM-150 | 150 | 10 | 2.4×2.5 | 9 | 13-16 |
| TM-200 | 200 | 10 | 2.4×2.5 | 9.2 | 18-21 |
| TM-250 | 250 | 13 | 2.7×2.8 | 96 | 22 - 27 |
| TM-300 | 300 | 20 | 3.1×3.2 | 10.1 | 27-33 |
| TM-400 | 400 | 24 | 3.2×3.4 | 11.9 | 37-44 |
| TM-500 | 500 | 32 | 3.5×3.8 | 12.1 | 47-56 |
| TM-600 | 600 | 35 | 3.7×3.9 | 12.7 | 57-68 |
| TM-750 | 750 | 39 | 3.9×4.1 | 13 | 72-86 |
| TM-850 | 850 | 46 | 4.2×4.5 | 13.5 | 82-98 |
| TM-950 | 950 | 49 | 4.4×4.7 | 13.8 | 92-111 |
| TM-1120 | 1120 | 66 | 4.9×5.3 | 14.4 | 109-131 |
| TM-1500 | 1500 | 87 | 5.6×5.9 | 15.2 | 146-175 |
| TM-2250 | 2250 | 147 | 6.7×6.9 | 16.9 | 219-263 |
| TM-3360 | 3360 | 156 | 6.7×6.9 | 18.9 | 327-392 |
Note:Any change of technical data shall not be advised additionally.

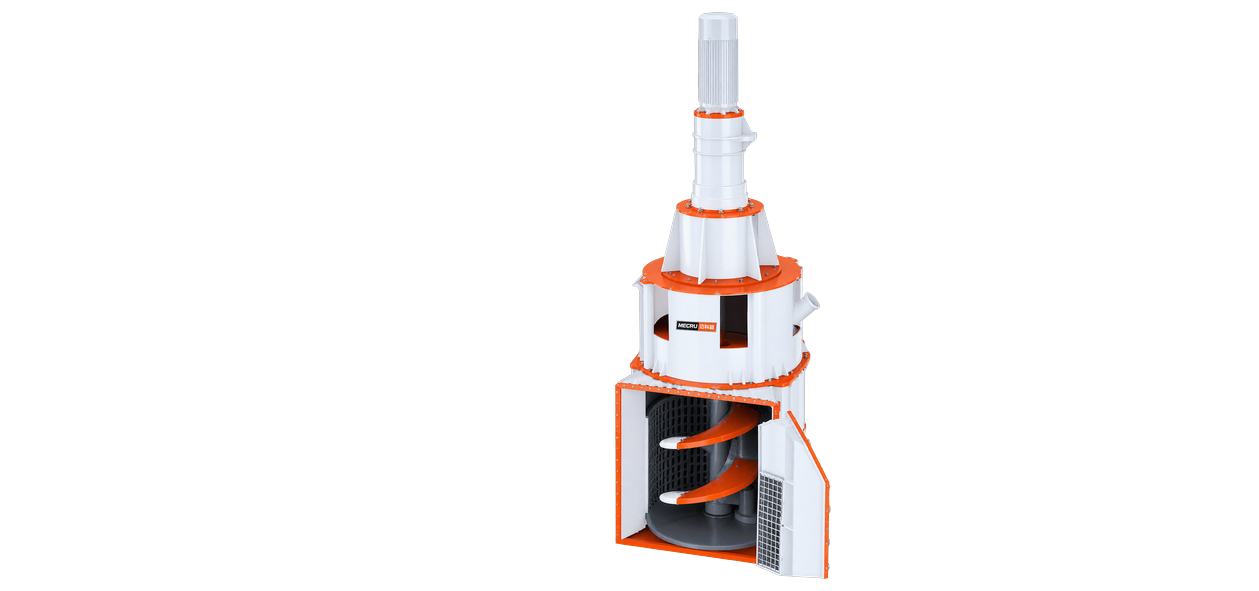

Tower mill is mainly composed of transmission system, tower body, spiral agitator, protective lining,etc.The working principle of the tower mill is that during the operation of the low-speed rotating stiringspiral, due to the effects of centrifugal force, gravity, and friction, the crushing medium and materialsachieve an orderly motion cycle and a basic macro-balance of forces. Within the spiral stirring It is a spiralupward that is less than the liting speed, and a spiral downward between the inner lining and the outeredge of the spiral. However, at the micro level, due to the unevenness of its force, dynamic speed differ-ences and force changes are formed, resultingin the material being strongly squeezed and ground, as wellas the force breaking, micro-shearing, chopping, etc. between the materials. effect. Materials with quallfied fineness are conveyed as they rise with the conveying medium and flow out freely from the upper partof the tower mill body after being internally classified.
